IRDA JOY V2.1

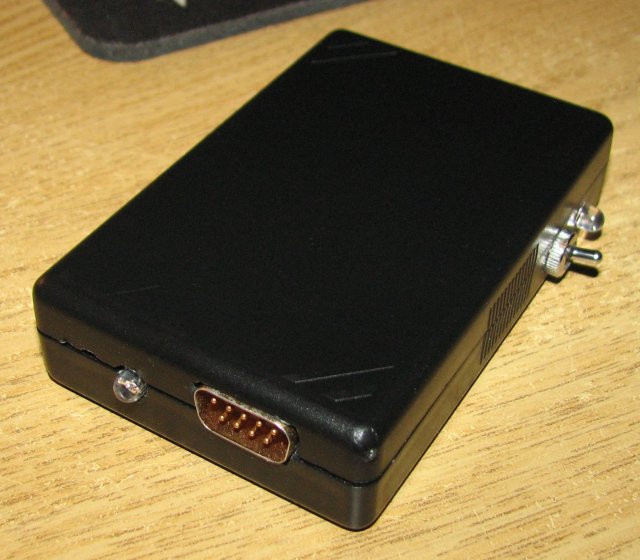

Here is the final IRDA Joy interface.
V2.1 Updates
* Changed a few components to use 3V power supply
* Added a power switch and a status led
* Fixed a random behavior
* Removed 20ms tempo between each byte frame
* Allow USART (debug) or IRDA mode
The attached IRDAJOY-V2.1-hw.7z file contains schematics.
The attached IRDAJOY-V2.1-sw.7z contains source and hex files to program the PIC. All other details are in the README.txt file.
To use this interface with your PSP, you need specific PSP firmware and software. Go to the following link: [http://zx81.zx81.free.fr/serendipity_fr/index.php|http://zx81.zx81.free.fr/serendipity_fr/index.php|fr]
Have fun !
Buzz
